Drawout Case (DOC)

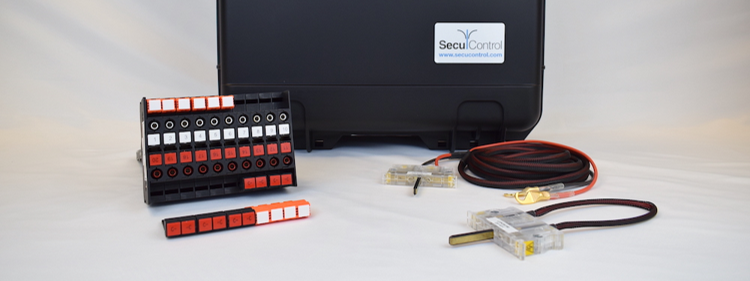

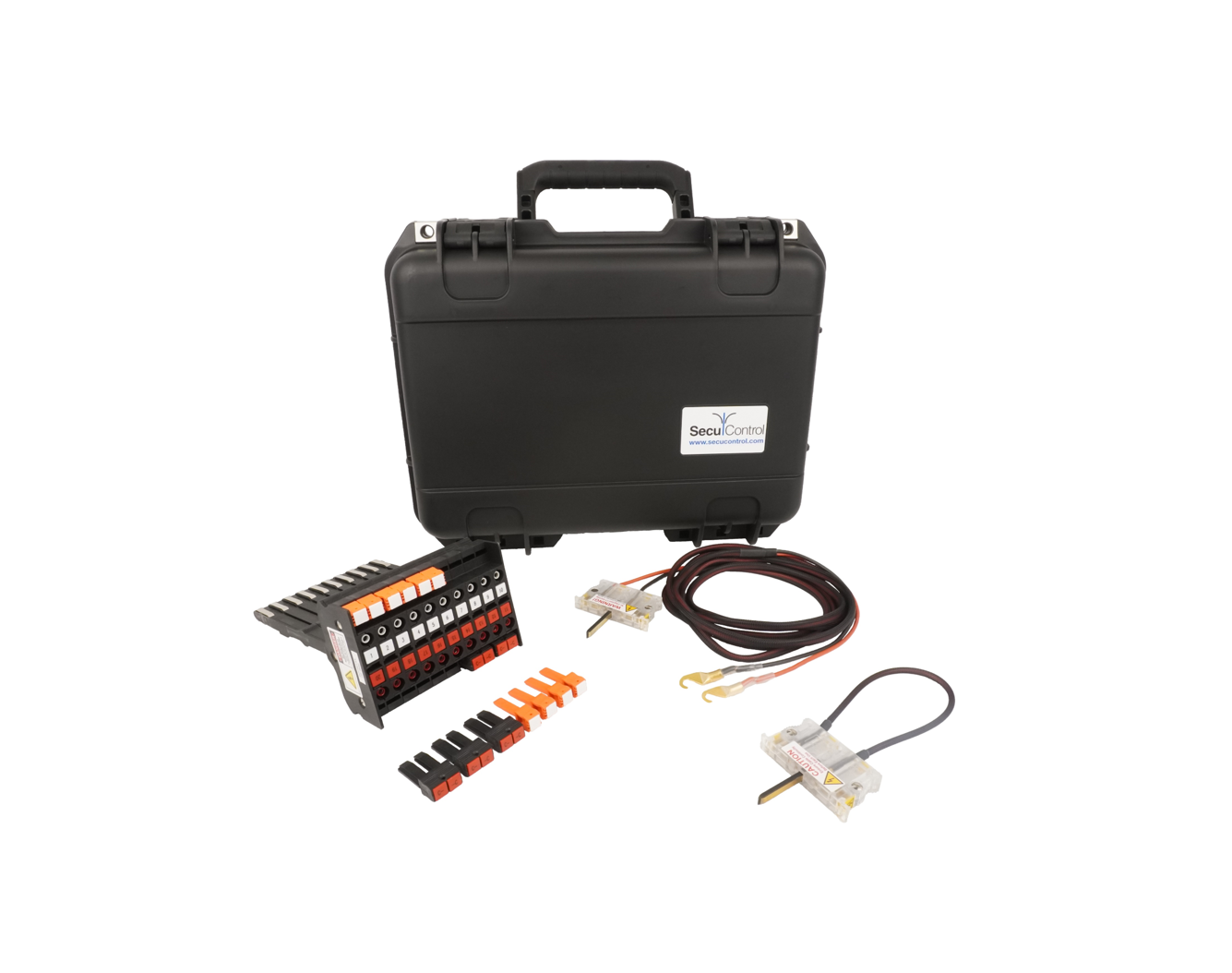

Drawout Case Kit: 2 DOC + 1 Storage case

Drawout Case Kit: 1 DOC + 1 Storage case

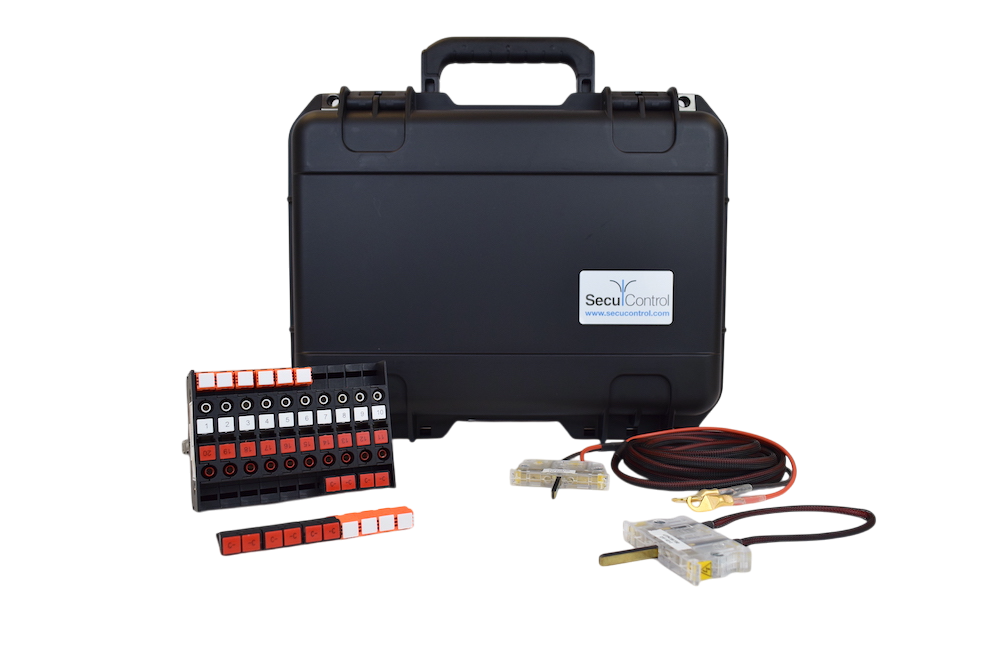

DOC_usa_2-Photoroom

Product options

Effortless Testing for Drawout Case Relays

Core Features

Universal Compatibility: Engineered to fit GE, Basler, and other 10-pole drawout relay styles using GE S2/M1 cases
Low Internal Resistance: With less than 2 mΩ of internal resistance, the DOC ensures accurate secondary measurements without introducing signal distortion.
Built-In Disconnect Pins: Supports flexible insertion for any relay configuration. Current pins are keyed to prevent incorrect orientation and guarantee safe CT shorting.
Fail-Safe Insertion: Mechanical guides on the DOC prevent upside-down connections, ensuring proper alignment every time.

Why SecuControl?

SecuControl specializes in innovative testing solutions with high-quality engineering, robust safety standards, and user-friendly designs.

SecuControl, Defining excellence in every connection.

Product options

Benefits

Safety First: One solid, safe connection and no exposed live metal parts. The DOC features a finger-safe design and a flame-retardant plastic housing rated UL94 V-0 for maximum protection.
Versatile Operation: Designed for both normal operation and testing, the DOC replicates the function of traditional operational paddles, no need to swap or add accessories.
Normally Closed Contact: Uses the same springs as SecuControl blocks, allowing CTs to remain safely shorted by default
Cost-Effective Investment: No additional equipment required. Integrated labeling, color, and disconnect pin design simplify setup and support efficient, intuitive testing with clear guidance.

Efficient Testing: No need to pre-set short circuits like with traditional paddles. Shorting pins can be inserted in any sequence, and built-in banana jacks enable fast secondary injection or measurement.
Compliance Guaranteed: Fully compliant with international standards, ensuring that all testing procedures meet the highest benchmarks for safety, performance, and accuracy.
Safe, Intuitive Operation: Universal plug design supports flexible configurations as long as proper pin positioning is followed, the system ensures intuitive, safe, and reliable use during testing and maintenance.
